5 years warranty 50w 80w 100w 150w 240w led street light, IP66 waterproof 3000k 6000k city led road lighting
Model Number : EK-LD2301
Naziv proizvoda: Tijelo uličnog svjetla
Recommend the Watts: : 20w 60w 80w 100w 150w 200w 240w
Indeks vodootpornosti: IP66 IP67
Indeks otpornosti na zemljotres : IK08 IK09
Radna temperatura (℃): -20-60
Boja površine: tamno siva, svijetlo siva, crna, prilagođena itd
Contain Accessories : Complete finished street lights
Karakteristike proizvoda
- Aluminijumsko kućište je napravljeno od ADC12 aluminijumskog livenja pod pritiskom, površina je tretirana farbanjem sprejom kako bi se sprečila korozija i postojanost boje.
- Dizajn rebra hladnjaka velike površine za brzu teoriju u korist konvekcije između hladnog i vrućeg zraka, kako bi se održalo dobro rasipanje topline svjetiljki i povećala svjetlost tijekom cijelog životnog vijeka.
- Kutija za napajanje kako bi lampa bila kompletna i ujedinjena.
- Dizajn ventilacije za sprečavanje prašine i stagnaciju vode za postizanje dugog vijeka trajanja svjetla.
Product Details

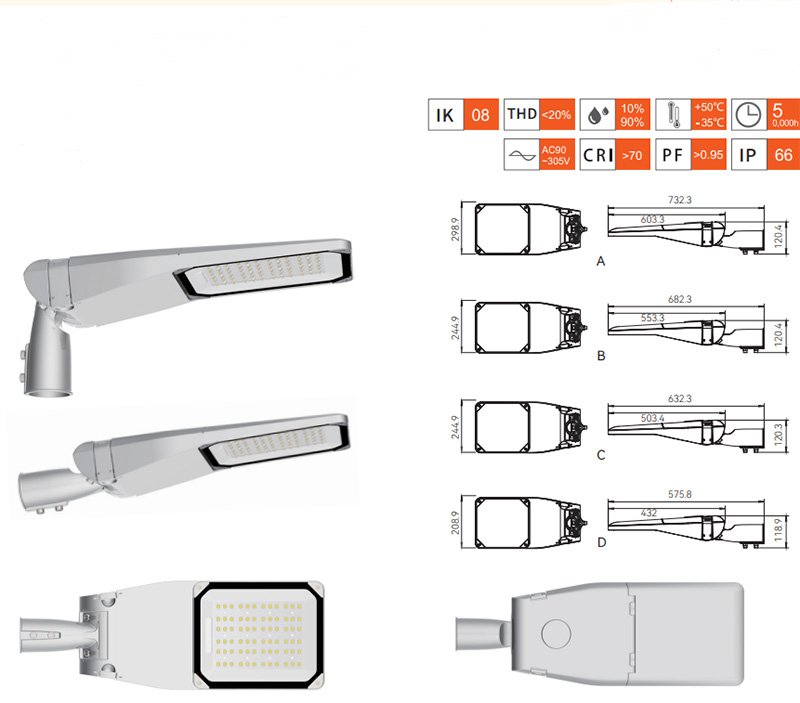

Product Size Chart
Specifikacija i dimenzije
| Model | EK-LD2301A | EK-LD2301B | EK-LD2301C | EK-LD2301D |
| Wattage | 150-240W | 100W-150W | 60W-100W | 20W-60W |
| Average Lumen | around 120 LM/W | around 120 LM/W | around 120 LM/W | around 120 LM/W |
| Chip Brand | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN | LUMILEDS/CREE/SAN'AN |
| Driver Brand | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics | MW/PHILIPS/Inventronics |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Voltage Range | 90V-305V | 90V-305V | 90V-305V | 90V-305V |
| Surge Protection(SPD) | 10KV/20KV | 10KV/20KV | 10KV/20KV | 10KV/20KV |
| Insulation Class | Class I / II | Class I / II | Class I / II | Class I / II |
| CCT. | 3000-6500K | 3000-6500K | 3000-6500K | 3000-6500K |
| CRI. | >70 | >70 | >70 | >70 |
| Working Temperature | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) | (-35℃ to 50℃) |
| IP klasa | IP66 | IP66 | IP66 | IP66 |
| IK Class | ≥IK08 | ≥IK08 | ≥IK08 | ≥IK08 |
| Lifetime (Hours) | >50000 hours | >50000 hours | >50000 hours | >50000 hours |
| Materijal | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium | Diecasting aluminium |
| Photocell base | With | With | With | With |
| Installation Spigot | 60/50mm | 60/50mm | 60/50mm | 60/50mm |
New Arrival 180W Street Led Manufacturer Outdoor Lighting Waterproof Aluminum LED Street Light
ShenZhen EKI Lighting Industrial Co., Ltd. je proizvođač Aluminijskih LED rasvjetnih kućišta od livenog pod pritiskom sa različitim našim vlastitim razvijenim dizajnom i tehnologijama.
With Our High-Technology Machine such as, 250T 800T 1000T 1250T Die Casting Machine, CNC Machine, Well Managed production line and surface treatment facility. We becoming specialized in LED Streetlight Housing, LED Floodlight Housing, LED Highbay Heatsink, LED Empty Casting aluminum light housing.
