Die casting Aluminum Material Integrated LED Lighting ,high lumen brightness led light parts with PCB, Lens choose

Model No： EK-LD06
Match Power： 60W/180W
Contain Accessories： Aluminum Housing,Toughened Glass, Assembly Screws,Lamp Post pole,
Item         :  IP65 LED Street Lighting Housing
Power      :   60W / 180W
Ulazni napon: AC220 - 240V, 50/60 HZ
Izbor boje: tamno siva, svijetlo siva, crna, prilagođena itd
Vek trajanja: ≥50000 sati

Karakteristike proizvoda

  • Once powder coating can give 5years guarantee
  • Four size to match differentpower 40w 80w 120w 150w 180w
  • IP66 grade waterproof to protect lighting use seaside
  • IK09 glass grade to use for high standard projects
  • Visokokvalitetni pribor 304 vijci od nehrđajućeg čelika
  • 72hours salt spray testing, suit use on seaside road way,
  • High heat dissipation conductive with convolution property
  • Lamp post match : 50/60mm
  • Powder treatment: sandy gray powder painting
  • Surface Color : Dark gray, Light gray & Black and others be customized

Specifikacija proizvoda

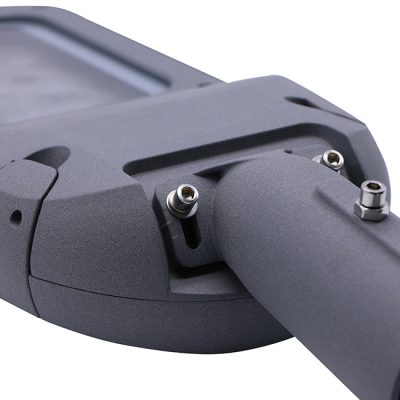

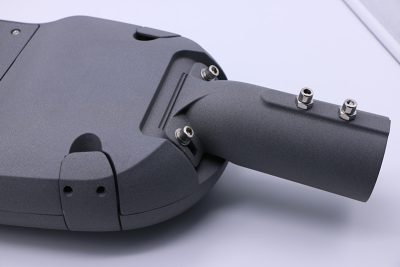

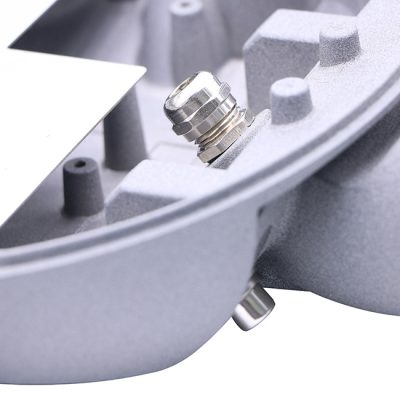

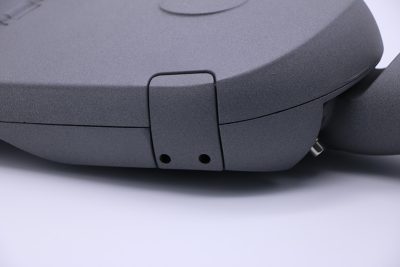

Powder Coating 100w 120w IP66 LED Street Light Housing

EK-LD06

IP66/IP67 , IK09/IK10,

Materijal: ADC12 aluminijum

Boja kućišta: siva, crna,

  1. - Made of ADC12 aluminum Die-casting,
  2. - IP66 waterproof ADC12 Aluminum case,
  3. - surface treated by Spray-painting to Prevent Corrosion and color Persistence,
  4. - High heat dissipation conductive
  5. - Corrosion resistant polyester powder paint 2.0mil thickness,
  6. - Standard colors : Dark gray, Light gray & Black any special can be customized,

Cijela serija i specifikacija

Kod modelaHousing Size （mm)Match Power  Lamp Post （mm)  Weigh（Kg)Dodaci
    EK-LD06(XS)535*200*120  20W-40W 502.9Heatsink body,armoured glass,Waterproof Rubber Ring，304 s/s screws,
EK-LD06(S)590*235*12550W-80W 50/60  3.6
EK-LD06 (M)690*260*130100W-120W  605.8



EK-LD06 (L)693*310*181150W-180W60                8.0
Legend: Std = IP66 IK09 Testing certificates
Materijal kućišta: liveni aluminijum + oklopno staklo
Radna temperatura -40℃~50℃ 20%~90% HR
